Details

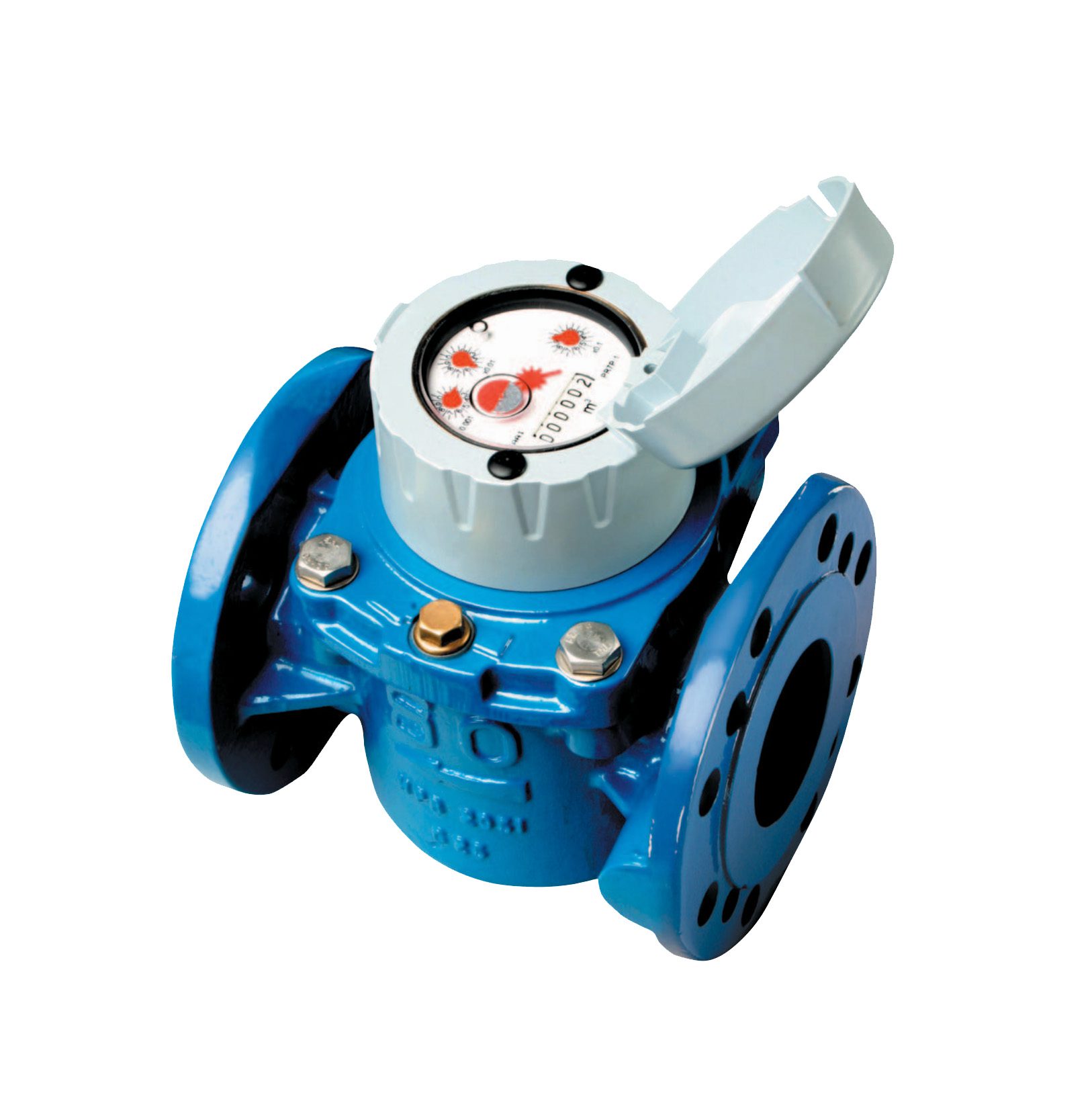

The HELIX H4000 is a high-performance Woltmann water meter designed for bulk flow measurement in commercial and industrial applications. Trusted worldwide, the H4000 offers accurate and reliable readings for clean, cold potable water and operates efficiently even under demanding conditions.

Range: 40/50/80/100/150/200/250/300mm.
Interchangeable internal mechanism.
Suitable for forward and reverse flow measuring.
Versatile bi-directional inductive pulse output with external PR7.
Pressure tapping.
Max working pressure: 1 600 kPa.

Details

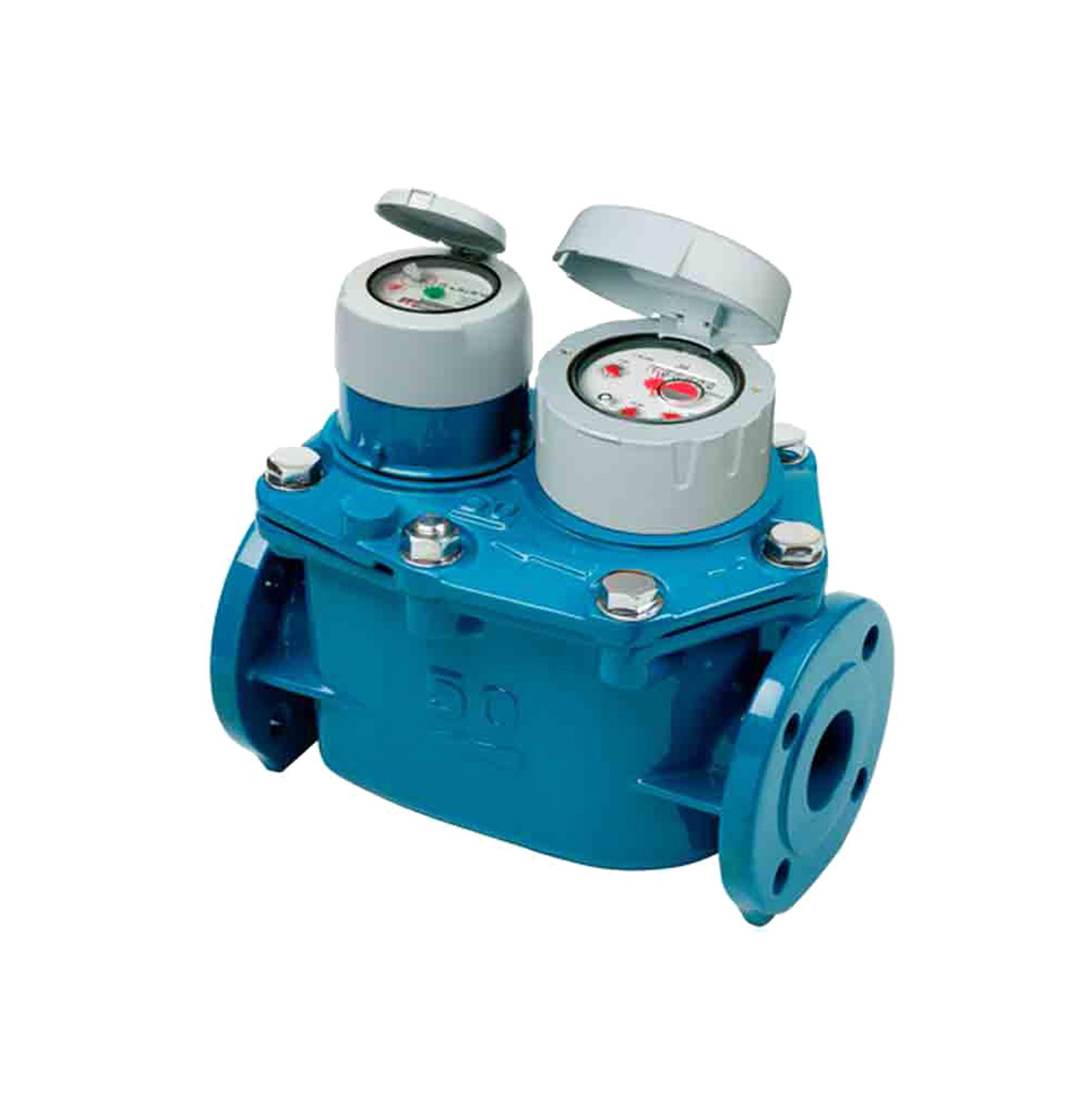

The C4000 In-line Combination Water Meter is a high-performance solution designed to accurately measure both high and low water flow rates in a single, compact unit. Engineered for durability and precision, this meter is ideal for commercial, industrial, and municipal applications where water consumption monitoring is critical.

Consisting of an H4000 Woltmann helical vane inferential type water meter and an integral V220 class C bypass meter.
Range in mm: 50/80/100.
Max working pressure 1 600 kPa.
